YIB Promoting Safety

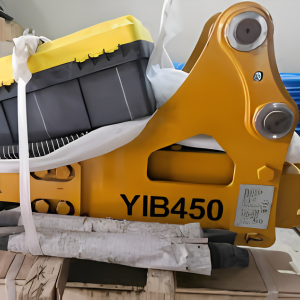

Product Details - YIB 450
- Category: YIB450
- Carrier Weight: 1.2–3.0 Ton
- Tool Diameter: 45 mm
- Operating Weight 120 kg
- Height: 1213 mm
- Required Oil Flow: 20–40 l/min
- Operating Pressure: 90–120 kg/cm²
- Impact Rate: 700–1200 BPM
- Hose Diameter: 1/2 inch
- Back Head Pressure: 12 kg

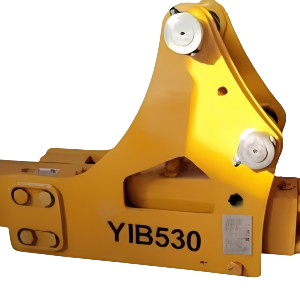

Product Details - YIB 530
- Category: YIB530
- Carrier Weight: 2.5–4.5 Ton
- Tool Diameter: 53 mm
- Operating Weight 152 kg
- Height: 1317 mm
- Required Oil Flow: 25–50 l/min
- Operating Pressure: 90–120 kg/cm²
- Impact Rate: 600–1100 BPM
- Hose Diameter: 1/2 inch
- Back Head Pressure: 12 kg
Product Details - YIB 680
- Category: YIB680
- Carrier Weight: 4.0–7.0 Ton
- Tool Diameter: 68 mm
- Operating Weight (Side Type): 275 kg
- Operating Weight (Top Type): 371 kg
- Operating Weight (Box Type): 360 kg
- Height: 1620 mm
- Required Oil Flow: 40–70 l/min
- Operating Pressure: 110–140 kg/cm²
- Impact Rate: 500–900 BPM
- Hose Diameter: 1/2 inch
- Back Head Pressure: 16 kg

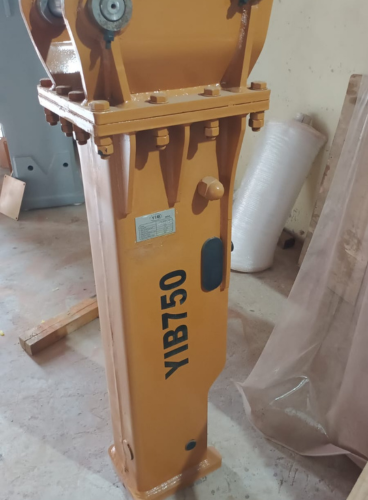

Product Details - YIB 750
- Category: YIB750
- Carrier Weight: 6.0–9.0 Ton
- Tool Diameter:75 mm
- Operating Weight (Side Type): 335 kg
- Operating Weight (Top Type): 413 kg
- Operating Weight (Box Type): 468 kg
- Height: 1899 mm
- Required Oil Flow: 50–90 l/min
- Operating Pressure: 120–150 kg/cm²
- Impact Rate: 400–800 BPM
- Hose Diameter: 3/4 inch
- Back Head Pressure: 16 kg

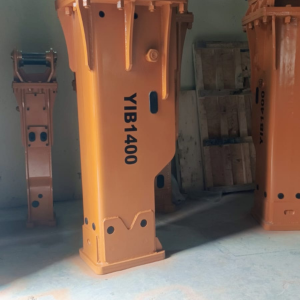

Product Details - YIB 1400
- Category: YIB1400
- Carrier Weight: 14–26 Ton
- Tool Diameter: 140 mm
- Operating Weight (Side Type): 1782 kg
- Operating Weight (Top Type): 1920 kg
- Operating Weight (Box Type): 1940 kg
- Height: 2813 mm
- Required Oil Flow: 120–180 l/min
- Operating Pressure: 160–180 kg/cm²
- Impact Rate: 350–500 BPM
- Hose Diameter: 1 inch
- Back Head Pressure: 16 kg

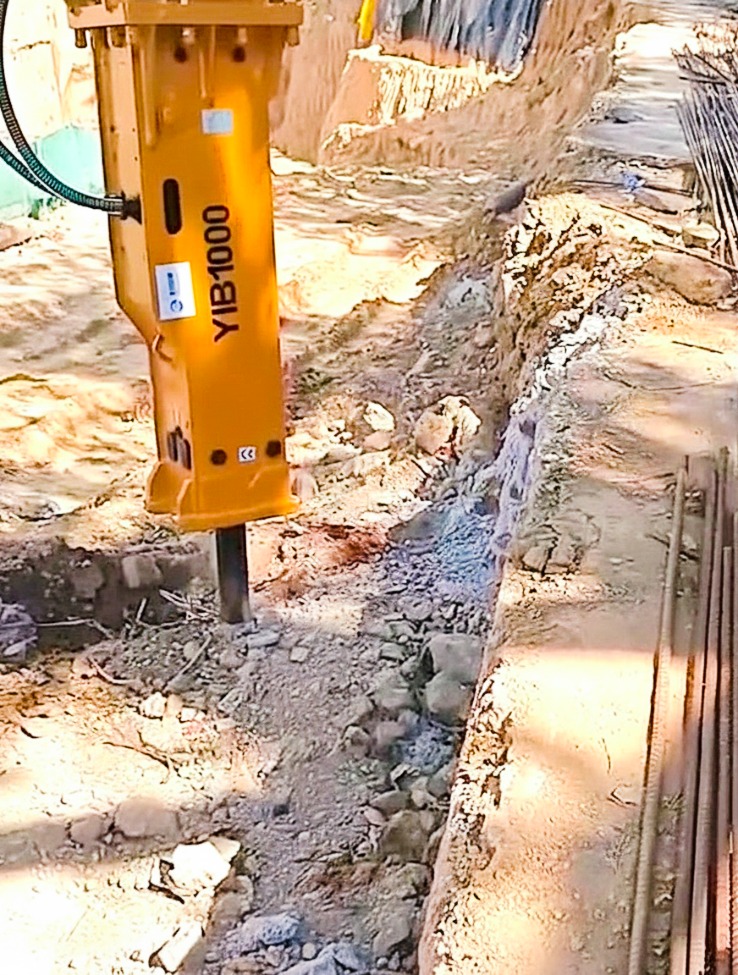

Product Details - YIB 1000
- Category: YIB 1000
- Carrier Weight: 11 to 16 Ton
- Tool Diameter: 100 mm
- Operating Weight (Box Type): 979 Kg
- Required Oil Flow: 80 to 110 L/min
- Operating Pressure: 150 to 170 Bar
- Back Head Pressure: 350 to 700 Bar

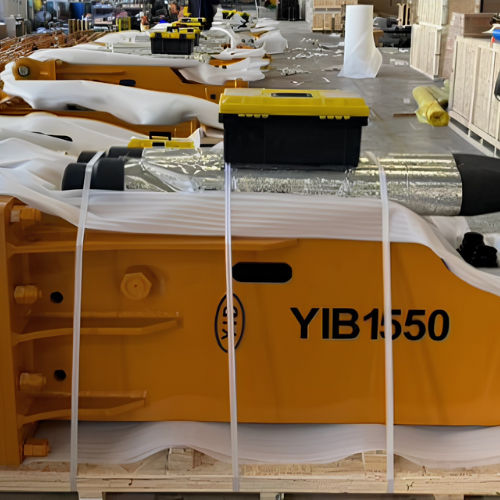

Product Details - YIB 1550
- Weight: 2632 kg
- Blow Rate: 450 blows/min
- Carrier: 28–35 Ton
- Impact Energy: 5.01 kJ
- Total Length: 3215 mm
- Tool Diameter: 155 mm
- Required Oil Flow: 240 L/min
- Operating Pressure: 180 bar
- Model Series: SB
